The Connected Rider's GPS.    The next evolution of Trail Tech's most popular offroad GPS. Featuring patent pending Buddy Tracking* Bluetooth for phone and media coneection. 4" color touchscreen, and full vehicle integration. See the data that matters most to you. *Ride group visible on map. Cellular service not required. Voyager Pro FAQ


Buddy Tracking: Patent Pending
  Increase ride distance between you and your buddies
  Map View "Buddy Mode" keeps buddies on screen
  Emergency Beacon summons your buddies with the push of a button
  "Buddy Destination" draws a line between you and your buddy
GPS Connected:  Cellular Service Not Required
  Preload topo maps
  Buddy Tracking
  Emergency Beacon
  Glove-friendly 4" touchscreen
Bluetooth Connected:  Phone and Headset Pairing
  Media playback
  Phone call and message notifications
  Intercom communication
Ride Connected:  Vehicle Data at Your Fingertips
  Tachbar and gauge cluster screens
  Vehicle sensors and GPS Data
  Configurable user screen
  IP67 Rated
    Availability Guide: If you order an item that is on backorder, we will not charge your card until the order is ready to ship.cyclebuy
     = Normally ships the same business day     = Ships in 1 to 2 business days     = On backorder from the manufacturer
Voyager Pro GPS Kit - KTM / Husqvarna / Husaberg Cost Add To Cart

Voyager Pro GPS Kit 111 (TT-922-111)
KTM 2017-18 EXC/XC/XC-W
KTM 2016-18 SX//SX-F/XC-F
Husqvarna 2017-18 FE/TC/TE/TX 125/250/300
Husqvarna 2016-18 FC/FX 250/350/450

$579.99
MSRP $599.95


Voyager Pro GPS Kit 110 (TT-922-110)
KTM 200/250/300/350 XC/XC-W/XCF-W/EXC 2008-16
KTM 250R FREERIDE 2014-17
KTM MXC/EXC/XC-F/XCF-W/SMR (EXCEPT 2016 XC-F) 2003-16
KTM XC/XC-W 200/250/300 2008-16
KTM SX/MXC/EXC/XC/XC-W 2000-15
---------------------------
HUSQVARNA FC 250/350/450, FE 250/350/450/501, TE 250/300 2014-16
HUSQVARNA TC/FC 125/250/350/450 2015-16
HUSQVARNA TE 125/250/300 2011-15
HUSQVARNA TE 250/300/310/400/449/511/610 2009-16
HUSQVARNA TXC 250/449/450/511 2008-15
HUSQVARNA CR/TC 125/250/449/450 2009-15
HUSQVARNA WR 125/250/300 2009-15
---------------------------
HUSABERG TE 125/250/300 2011-15
HUSABERG FE/FX 390/450/570 2009-15
HUSABERG FE 250/350/500, TE 250-300 2013-14
HUSABERG FS 570 2012
HUSABERG CR/TC 125/250/449/450 2009-15
HUSABERG 501E 2000-08

$579.99
MSRP $599.95

Voyager Pro GPS - Replacement Head Unit  Cost Add To Cart
Voyager Pro Replacement Head Unit (TT-9200-R2)
Head unit only, no sensors.
$499.95

  Voyager Pro GPS Mounts for Motorcycles Cost Add To Cart
Voyager Pro Protector (TT-026-X)
Billet Aluminium Protector for Voyager Pro adds durability and protection for extreme riding conditions.
$149.95

Voyager Pro Dock Kit (TT-9200-DOCK)
The Voyager Pro dock hard-mounts to the vehicle and allows quick removal of Voyager Pro. Included in Voyager Pro kits.
$49.95

Voyager Pro Center Mount (TT-026-OEB9)
Voyager Pro Center Mount for 1-1/8" bars. Aluminum CNC with matte black anodized finish. Works with split bar clamps, like on KTM and Husqvarna.
$39.95

Voyager Pro Accessories Cost Add To Cart
7mm Radiator Fin Sensor, Short (TT-7500-3003)
Temperature Sensor: Radiator Fin, 7mm Wide, 180mm Long.
$31.95

Replacement Buddy Tracking Antenna (TT-9200-V2V1)
The external V2V radio antenna is designed to be mounted to plastic, like a number plate. Installing enables buddy tracking features. Included in Voyager Pro kits.kit.
$29.95

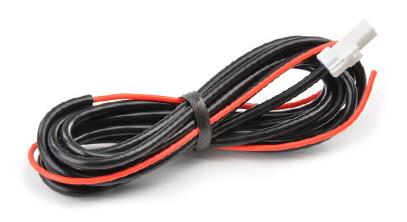

Voyager/Vapor Ignition Sensor (TT-9000-1021)
1800mm Length (70.87").
$11.95

Voyager/Vapor/Endurance II Power Connection (TT-9000-1012)
Extra Long 2550mm (100.4").
$11.95

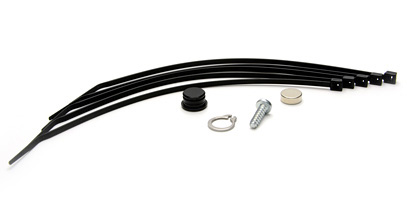

Magnet Kit: KTM Motorcycles (TT-100-01)
$11.95


Larger Images
  Trail Tech Voyager Pro / Protectors / Mounts - Larger Images and Info

Trail Tech Voyager Pro, the Connected Rider’s GPS. A premium GPS for Powersports. The next evolution of Trail Tech's most popular off-road GPS. Featuring patent pending Buddy Tracking*, Bluetooth for phone and media connection, 4" color touchscreen, and full vehicle integration. See the data that matters most to you.        *Ride group visible on map. Cellular service not required.

Voyager Pro Quick Start Guide (010-ELV-192)

Voyager Pro GPS Package includes:  Head Unit (9200-R2), 8mm Fin Sensor (7500-3008), Magnet Kit (100-01), Wheel Sensor (101-06), Power Lead (9000-1011), Ignition Sensor (9000-1021), Mounting (9000-1000), Buddy Tracking Antenna (9200-V2V1), and Dock (9200-DOCK).

Trail Tech Voyager Pro, the Connected Rider’s GPS. A premium GPS for Powersports.

The map screen is enabled with base maps, topography lines, hill shading, and some trails. Record or load GPX trails and riding areas, and transfer to a PC using the MicroSD card. Voyager Pro comes loaded with North American maps, but other map regions can be downloaded for free.

Amongst the major features is Buddy Tracking. Buddy Tracking uses localized radio signals and can support up to 20 riders in a single group. View members of your ride group on the map screen in real time, increase your following distances, and use the emergency beacon to summon your buddies. Cell reception is not required.

Voyager Pro is Bluetooth enabled for intercom, phone and media controls. Play songs from your phone or MicroSD card using a Bluetooth headset, speaker, or intercom. Two phones and two headsets can be connected at the same time.

The 4” glove friendly color touchscreen TFT display is visible in all conditions, including direct sunlight. Sealed and rated IP67 for anti-dust/water intrusion, it’s built to withstand the harshest elements that come with extreme riding conditions. The mounting dock hard mounts to the dashboard, can be locked, and allows for quick removal of Voyager Pro from the machine. The dock utilizes the AMPs hole pattern, and is compatible with the full line of RAM brand mounts or Trail Tech mounting hardware.

Voyager Pro integrates with your vehicle using standard Trail Tech vehicle sensors, providing vital ride data such as engine temperature, RPM, battery voltage, speed/distance and more.

At 5.6 x 3.5 inches, Voyager Pro still fits on dirt bike dashboards, but is big enough to use on adventure bikes and UTVs. Voyager Pro’s mapping abilities and buddy tracking make it the premium choice for off-road riders.

12V DC power required, make sure your vehicle has a battery.

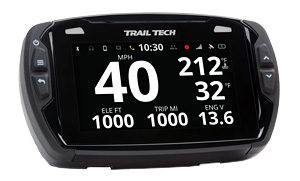

Cluster Screen    Valuable Dashboard Gauges
Get speed from, the GPS or the wheel sensor. Displays speed, temperature, distance, elevation and voltage.

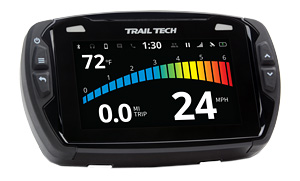

Tachbar Screen    "Everybody Loves the Tach Graph"
Get speed from, the GPS or the wheel sensor. Displays speed, temperature, distance, elevation and voltage.

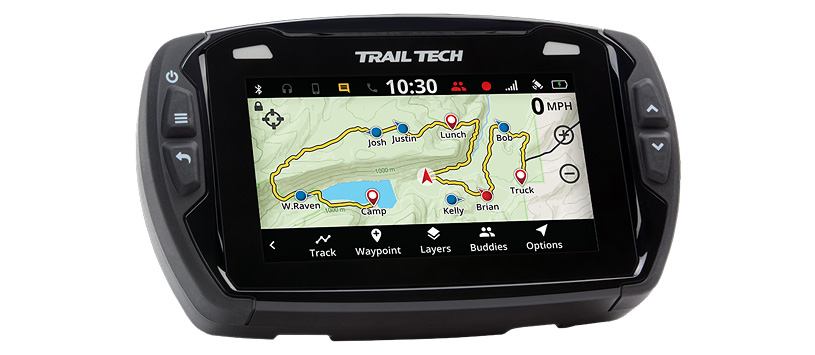

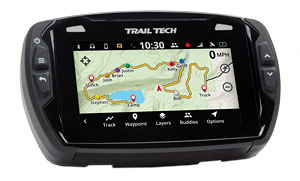

Map Screen    GPS Maps With Buddy Tracking*
Color maps with topo and hillshading. Supports tracks, routes, waypoints. Plan and record entire trail systems. *Patent pending.

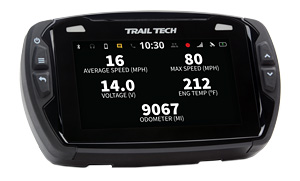

User Screen    "Choose Your Own Gauges"
The user screen is customizable. You can choose up to 6 gauge readouts from a long list of options. Select fewer gauges to make the remaining readouts larger.

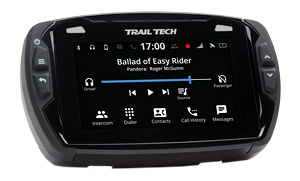

Media Screen    Bluetooth Phone and Headset Interaction
You can control the song playing on your phone, change headset volume levels, change the music source, and access phone dialing, call history and messaging features. Compatible with Sena headsets.

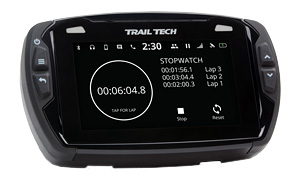

Stopwatch Screen    Simple Lap Timer
Tap the large circle to begin counting. Tap it again to take note of the first lap off to the side and start timing a new lap.

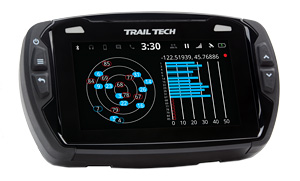

Satellite Screen    GPS Satellites in Range
The satellite screen displays a graph of the sky and visible GPS satellites in orbit. The graph to the side shows the relative signal strength of each satellite.

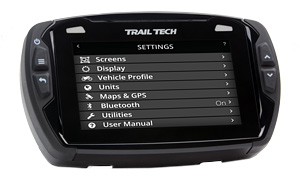

Settings Screen    Detailed Settings and User Guide
The Settings Menu is where Voyager Pro is customized to your needs. You can access the settings menu from the main screens by pressing the menu button.
Mounts
  Voyager Pro Protector / Mounts / Accessories - Larger Images

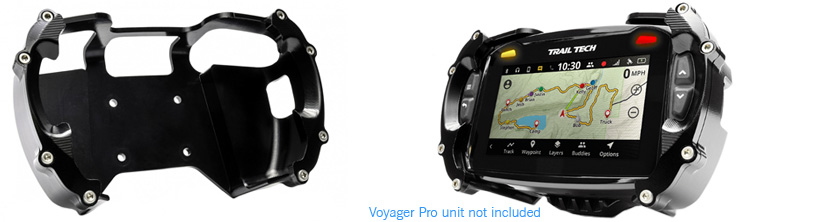

Voyager Pro Protector TT-026-X

--- The Voyager Pro Protector is a precision billet aluminum case black anodizing for a clean look and designed to protect your Voyager Pro GPS unit from the elements and debris, while still allowing you to access to the SD card slot.

--- The Voyager Pro Protector gives nearly 360 degrees of protection insure this case will protect the Voyager Pro from front slapping branches as well as the screen from crashes.

--- The complete kit includes two different mounting options either RAM Ball Mount or an Aluminium Bar Mount and all the hardware necessary to assemble and mount to your Vehicle.

--- Voyager Pro Protector --- Mount Options: 1" Ram Ball Mount or 1-1/8" Aluminium Bar Mount --- *Voyager Pro and Dock Not Included

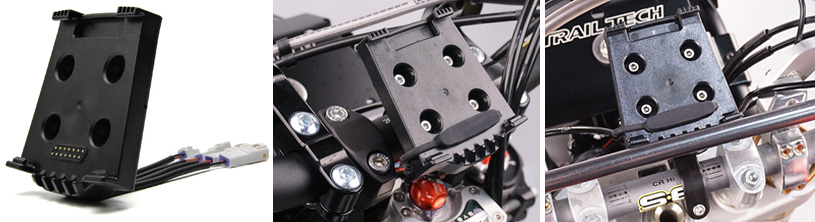

Voyager Pro Dock Kit TT-9200-DOCK


--- The Voyager Pro dock hard-mounts to the vehicle and allows quick removal of Voyager Pro.
--- Voyager Pro snaps on, is released by the large button on top, and can be locked using the Allen key.
--- Vehicle sensors plug into the back with waterproof white JST connectors.
--- The V2V antenna screws into the port on the back.
--- The black rubber guard is magnetic and protects the brass pins while Voyager Pro is removed.
--- Attaches to vehicles using the AMPs hole pattern. Compatible with Trail Tech mounting hardware and RAM brand mounts.

--- Included in Voyager Pro kits
Voyager Pro Center Mount TT-026-OEB9


--- Aluminum center mount for 1-1/8" handlebars.
--- Positions the gauge directly in the center of the bars.
--- Works best on motorcycles where the bar clamp is split to expose the center of the bar, especially KTM and Husqvarna.
--- Comes with four M4x12mm screws to attach the Voyager Pro dock.
--- Voyager GPS Unit Not Included.

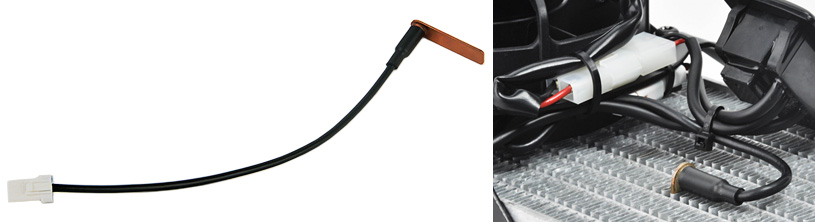

7mm Radiator Fin Sensor, Short TT-7500-3003

--- Temperature Sensor: Radiator Fin, 7mm Wide, 180mm Long
--- No cutting of fluid lines, or draining radiator
--- Fits most stock KTM Freerides and Honda radiators
--- Easy install
--- Short Fin Sensor can be used on the 732-FN9 fan kit.

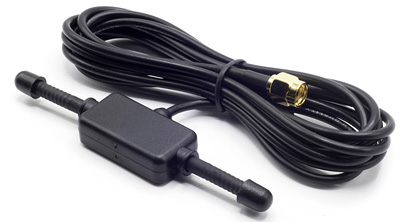

Replacement Buddy Tracking Antenna TT-9200-V2V1 Voyager/Vapor Ignition Sensor TT-9000-1021

--- The external V2V radio antenna is designed to be mounted to plastic, like a number plate.
--- It should be mounted vertically (up and down.)
--- Installing it enables buddy tracking features.
--- Plugs into the right antenna port on the back of the Voyager Pro dock.

--- Included in Voyager Pro kits.
Voyager/Vapor/Endurance II Power TT-9000-1012 Magnet Kit: Ktm Motorcycles TT-100-01
