NOTE: LFX14L2-BS12 is Shorai's recommended battery for all 250cc-570cc KTM/Husqvarna/Husaberg applications. |
SH-07L2
| Shorai Lithium-iron batteries provide extreme current and voltage performance, delivering more energy faster with less size and weight, and less damage to the battery per start cycle than any other brand or technology. Shorai batteries are about 75% lighter than comparable lead-acid batteries and hold a charge for up to a year without charging or maintenance. Shorai Lithium batteries are an excellent choice when it comes time to replace the battery in your dirt bike, street bike, snowmobile, watercraft, ATV, lawn tractor, or any other application using a lead-acid battery. |
|

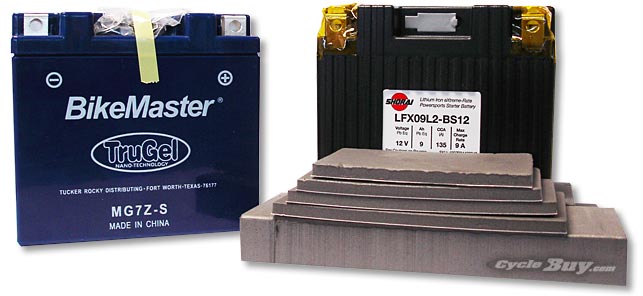

 TruGel battery weighs 4 lb. 4 oz. |
||
|
|||
| LFX Install Guide | |||
| Shorai batteries are available in either 6 or 12 volt models with pole polarity suited to any motorcycle. Each battery comes with a variety of adhesive backedfoam sheets to help fit the battery to its compartment if it is smaller than your original battery. | |||
|
|||
| WARRANTY TERMS Shorai Inc. offers a Limited Five-Year Warranty for LFX batteries, for defects in material and/or workmanship, pertaining to sales originating and delivered within the United States. See Shorai Warranty Form for online submission of warranty claims, and Return Merchandise Authorization (RMA#) assignment. Replacement batteries are to be issued by Shorai Inc and sent directly to the customer. If an exception is requested, a dealership is not authorized to issue a replacement battery without prior written authorization from Shorai Inc. Please do NOT return any product without an RMA#, or before Shorai has contacted you to perform some simple diagnostics. In many cases issues can be solved prior to return. Conditions which may void warranty: Opening the battery case may void the warranty Applications Not listed on the Shorai website product finder such as: Aircraft, Automotive, Motive power (LFX as main power source, not engine starter). Over-voltage charging, or other error by charger or user setting of charger. Use in excess of cranking (CCA) specifications Short circuit of main terminals or BMS port Improper connections to the 5-pin BMS port Over-discharge (i.e. resting voltage allowed to fall below 12.8V/6.4V for Lfx 12V/6V types) Physical Damage to the battery occurring after purchase (impact, etc)For more info, go to Shorai Customer Service/Warranty Terms. |
|
 |
 |
|
|
|
 Package contents |
The included self-adhesive foam spacers are sized as below: |
 |
 |
|
|
| Shorai LFX Battery Accessories |
|
| SH-BMS01 - Shorai Charge/Store Dedicated Battery Management System for Shorai LFX only. 2A Max charge rate, connects via BMS 5-pin port on LFX batteries. Includes modes for full charge, or long-term storage. Input 100V/240V AC, 50/60 Htz. This model includes AC adapter cable for USA 110-120V only. |
|
|
|
|
|
| SH-BMSCBL12 - Spare Extension Cable Set |
|
|
|
|
|
| |
 |
