  Fastway FIT System 1-Piece Bar Clamp Handguards
Fastway Integrated Technology (FIT) System Handguards from Pro Moto Billet / Fastway Performance offer a strong, innovative method of mounting handguards to almost any dirt bike and some ATVs. The unique handlebar clamp mounting system eliminates cable, brake hose routing headaches and helps prevent the handguards from twisting on impact.

Fastway FIT Version 2 handguards provide a solid billet aluminum top bar clamp with integrated hand guard mount tabs for a rigid and clean mounting system. Keeps cables and brake lines from interfering with guards and impact deflectors from twisting upon impacts. The solid top clamp provides extra support for bikes with rubber mounted bar clamps that twist easily during crashes.

FIT v1 and v2 handguard systems are available in 90 x 40mm, 96-100 x 40mm, and 100-106 x 40mm bolt patterns to fit most fat bar applications and 100 x 33mm, and 106 x 33mm bolt patterns to fit most 7/8 inch bar applications.

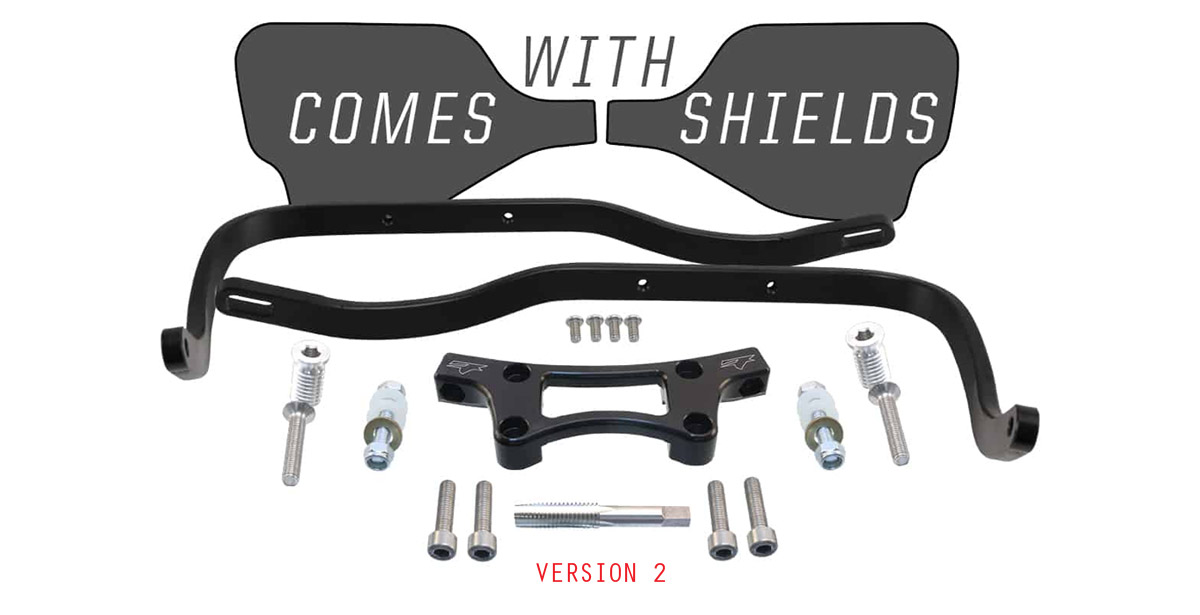

Version 2 kit includes:  1-Piece Billet Aluminum Bar Clamp, anodized Clear or Black* Handguard Bars, Mounting Hardware, and
a set of Shields.

*Black Kits are a CycleBuy creation and cannot be ordered from
Pro Moto Billet / Fastway Performance or other vendors.

HOW TO DETERMINE WHAT TOP CLAMP YOU NEED:
A = The distance in "mm"; from the center of the left bolt hole to the center of the right bolt hole that hold your handlebars tight.

B = The distance in "mm"; from the center of the front bolt hole to the center of the rear bolt hole that hold your handlebars tight.


     Availability Guide: If you order an item that is on backorder, we will not charge your card until the order is ready to ship.
     = Normally ships the same business day     = Ships in 1 to 2 business days     = On backorder from the manufacturer

For proper fit, please measure your handlebar mount bolt spacing before ordering. For help, see Top Clamp Measure Diagram above.

   90x40mm KTM Bolt Pattern  Cost  Add To Cart
 90x40mm - Use on these bikes with original triple clamps: KTM All offroad models 125-530 1998-18 (1 1/8" Bar Size)
FIT v2 90x40mm Bolt Pattern w/ CLEAR anodized bars (90mm side to side, 40mm front to back)
$137.70
MSRP $144.95


FIT v2 90x40mm Bolt Pattern w/ BLACK anodized bars (90mm side to side, 40mm front to back)
$149.95
MSRP $169.95



   100-106x40mm Bolt Pattern  Cost Add To Cart
 100-106x40mm - For 1 1/8" Bar Size  (Converted to 1 1/8" Bar Size - will not work with fat-bar adaptors)
FIT v2 100-106x40mm Bolt Pattern w/ CLEAR anodized bars (100-106mm side to side, 40mm front to back)
$137.70
MSRP $144.95


FIT v2 100-106x40mm Bolt Pattern w/ BLACK anodized bars (100-106mm side to side, 40mm front to back)
$149.95
MSRP $169.95


   94-100x40mm Bolt Pattern  Cost  Add To Cart
 94-100x40mm - For 1 1/8" Bar Size
FIT v2 94-100x40mm Bolt Pattern w/ CLEAR anodized bars (94 to 100mm side to side, 40mm front to back)
$137.70
MSRP $144.95


FIT v2 94-100x40mm Bolt Pattern w/ BLACK anodized bars (94 to 100mm side to side, 40mm front to back)
$149.95
MSRP $169.95



   FIT Parts and Accessories  Cost  Add To Cart
FIT v2 Top Clamp w/4 bolts
FW-V2-TC-004 - 94-100x40mm Top Clamp w/4 bolts (in stock)
FW-V2-TC-065 - 100-106x40mm Top Clamp w/4 bolts
FW-V2-TC-904 - 90x40mm Top Clamp w/4 bolts (in stock)
FW-V2-TC-xxx
$59.99
EACH






FIT System Replacement Shields w/hardware
Dimensions: 5" tall X 9" wide
White Plastic w/Orange Graphics
White Plastic w/Blue-Yellow Graphics
White Plastic w/Blue Graphics
White Plastic w/Red Graphics
White Plastic w/Black Graphics
Black Plastic w/Orange Graphics
Black Plastic w/White Graphics
Black Plastic w/Red Graphics
Black Plastic w/Blue Graphics
Orange Plastic w/Orange Graphics
Blue Plastic w/Red Graphics
(NOTE: Fastway handguards are pre-drilled and threaded for easy shield installation)
FW-22-1-9xx

$20.85
MSRP $21.95



FIT Replacement Handguard Set with Mounting Hardware
FW-22-1-195P - CLEAR anodized
(includes bar-end hardware and hardware to attach the bars to the center mount)
$56.99
MSRP $59.95

FIT Replacement Handguard Set with Mounting Hardware
FW-22-1-195PBK - BLACK anodized
(includes bar-end hardware and hardware to attach the bars to the center mount)
$69.99
MSRP $79.95

FIT Replacement Single Handguard only (No Mounting Hardware)
FW-22-1-195L - CLEAR anodized Left
FW-22-1-195R - CLEAR anodized Right
NOTE: Single side replacement handguards are only available in the new "narrower" bend and may not match older Fastway handguards.
$26.99
MSRP $27.95


FIT Replacement Single Handguard only (No Mounting Hardware)
FW-22-1-195LBK - BLACK anodized Left
FW-22-1-195RBK - BLACK anodized Right
NOTE: Single side replacement handguards are only available in the new "narrower" bend and may not match older Fastway handguards.
$32.99
MSRP $37.95


  Handguard Accessories  Go to Item Page
Grip Heaters
For use on any motorcycle or ATV with a battery and
charging system or a lighting coil.

Go to Grip Heaters Page
Handguard Shields
Install over rigid handguards/deflectors and heated grips for the ultimate protection against the elements.
Giant Loop Bushwackers Handguard Shields

Go to Handguard Shields Page
Bar End Mount Kits
Handguard Bar End Set fit most alloy or steel handlebars and Renthal Twinwalls
Fastway Threaded Bar End Insert Conversion Kit
G2 Nylon Bar End Mount Kit

Go to Bar End Mount Kits

Larger Images

1-Piece Bar Clamp FIT System Handguard - Larger Images

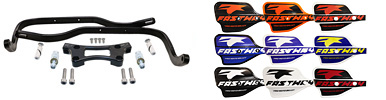

Fit Systems include:
  Shields w/graphics
  Fastway knurled wedgies and all mounting hardware
  Select Version 1, 2, or 3 center clamp

Version 2 Top Clamp w/4 Bolts

FIT Version 2 Top Clamp w/4 Bolts

FIT Shields

FIT Shields  ----------------------------------------------------------------------------
FIT Shields - Black Plastic/Orange Graphics(FW-22-1-911) FIT Shields - White Plastic/Orange Graphics (FW-22-1-912)
FIT Shields - Black Plastic/Red Graphics (FW-22-1-901) FIT Shields - White Plastic/Blue-Yellow Graphics (FW-22-1-927)
FIT Shields - Black Plastic/Blue Graphics (FW-22-1-916) FIT Shields - White Plastic/Blue Graphics (FW-22-1-919)
FIT Shields - Black Plastic/White Graphics (FW-22-1-924) FIT Shields - White Plastic/White-Black Graphics (FW-22-1-925)
FIT Shields - Orange Plastic/Orange Graphics (FW-22-1-904) FIT Shields - White Plastic/Red Graphics (FW-22-1-906)
FIT Shields - Blue Plastic/Red Graphics (FW-22-1-902)



Replacement Handguard Bar Set

FIT Replacement Handguard Bar Sets  --------------------------------------------
Replacement Handguard Bar Set anodized CLEAR
Replacement Handguard Bar Set anodized BLACK

Replacement Single Handguard Bar

FIT Replacement Single Handguard Bars  -----------------------------------------
Replacement Single Handguard anodized CLEAR (Left or Right) Replacement Single Handguard anodized BLACK (Left or Right)
