RAM® Mounts - Phone - GPS - Camera - Tablet
|
 |
 |
 |
 |
 |
 |
 |
X-Grip Universal
Device Holder |
Handlebar Clamp Base
w/ M8 x 1.25 Bolts |
Handlebar Base
w/Ball |
Ram U-Bolt Base
w/Ball |
Double Socket
2 or3 Inch Arm |
Small Tough Claw
w/Ball |
Double Take
Mirrors |
|
RAM® Mounts utilizes a patented rubber ball and socket design
which isolates and dampens shock and vibration allowing you to mount just about anything, anywhere on your motorcycle, ATV, or UTV. RAM is made of marine grade aluminum wit a powder-coated finish, stainless steel
hardware and Nitrile rubber balls. All backed by lifetime manufacturer's warranty. |
| |
|

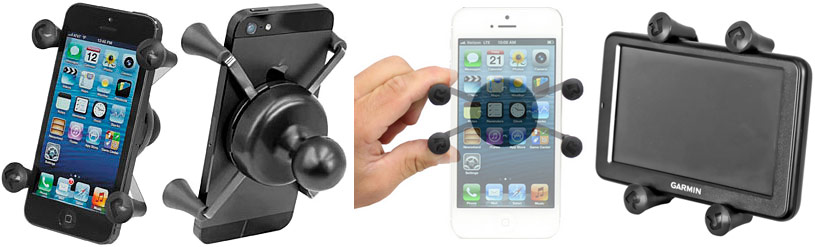

 X-Grip® Universal (RAM-HOL-UN7BU) (RAM-B-HOL-UN10BU) |
| The RAM X-Grip® has a clean and clever four leg design that sports great holding power without hiding your phone behind foam pads and plastic.
The perfect compliment to the modern sleek interior of today's vehicles, the RAM X-Grip® is the cell phone holder evolved. Compatible and interchangeable with a wide range of popular RAM Mounting products,
this elegant holder is ready to compliment your phone and become the most useful accessory in your vehicle. |
 |
 |
| |
|

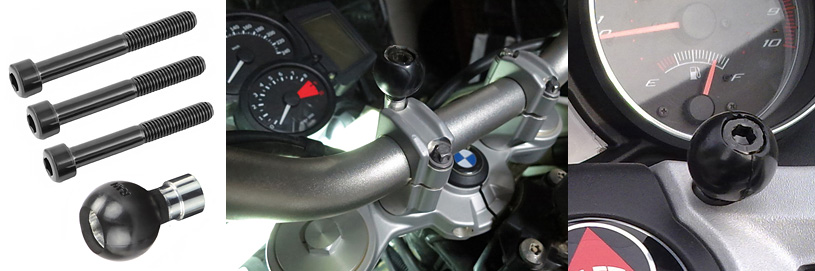

RAM® Motorcycle Handlebar Clamp Base with M8 x 1.25 Bolts (RAM-B-367U) |
Have an M8 by 25, 30, or 35mm handlebar bolt? The RAM-B-367U will replace that bolt with a standard ball-mount to put just about anything there! This part is compatible with any motorcycle which employs an
8mm bolt or smaller on its structure. A smaller bolt can be used, though the load capacity decreases with the bolt size.
Package includes: 1" Rubber ball (QTY. 1), M8 x 55 bolt (1.25 thread pitch) (QTY. 1), M8 x 60 bolt (1.25 thread pitch) (QTY. 1), M8 x 65 bolt (1.25 thread pitch) (QTY. 1),
Material: Marine Grade Aluminum, Ball Size: B Size 1" Rubber Ball, Attachment Point:
Motorcycle handlebar top clamp, any bike that uses an M8 threaded bolt.
Note: The "U" in the part number reflects product packaged in poly bag. To determine if these bolts are compatible with your motorcycle measure the bolt for the diameter and add 30mm to the length.
If it matches one of the 55, 60, or 65 mm length, then you can use the appropriate bolt supplied with the mount. If it does not match, you may be able to source the correct length of bolt locally or
from your BMW dealer. Be sure to use the correct torque spec when attaching the mount. |
|
|
| |
| Ram Handlebar Base w/Ball (RAM-B-309-1U) |
Ram U-Bolt Base w/Ball (RAM-B-231Z) |

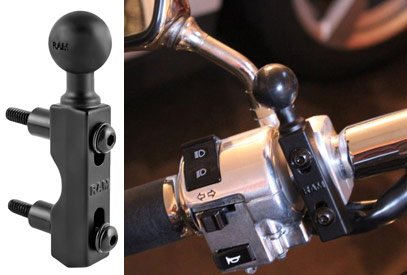

The RAM-B-309-1U connects to the left or right side of your handlebar clutch/brake clamp and holds one 1" diameter mounting ball. The base fits the control clamps on your motorcycle with 40mm x 6mm stainless steel
hardware, provided in the kit. To see if the RAM-B-309-1U base will mount to your motorcycle, check the hole spacing of the base against your clutch/brake reservoir. The holes centers have a minimum width of
0.94" and a maximum of 1.58".
|

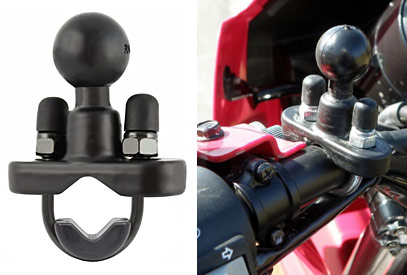

The RAM motorcycle handlebar base contains a 1" rubber ball designed to sit at right angles to the mounting rail. The zinc coated metal u-bolt accommodates rails in
diameter from 0.5" to 1.25" in diameter. Included are black cover caps to be placed over the exposed ends of the u-bolt and a composite adapter that can narrow the rail to a minimum width of 0.5".
|
 |
|
| |
|
Ram Double Socket - 6", 3" or 2" Arm (RAM-B-201U-C) |
|
|
The double socket arm, has a socket at both ends that accommodates 1" ball bases. A single spring inside the arm opens the end sockets, allowing you to pivot the ball and socket connection. This socket technology
allows for almost infinite adjustment and perfect viewing angles. |
|
 |
|
|
| |
|

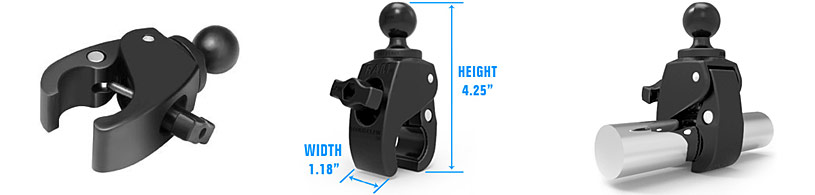

Small Tough Claw 1" Ball (RAM-B-400U) |
The RAM Tough-Claw™ is the perfect mounting base for quick and easy tool-less installation and removal on round, square, odd shaped rails and bars. The Tough-Claw™ can be clamped on rails from 5/8 to 1 1/2
inch diameter. Ideal for mounting tablets, action cameras, smart phones, rod holders for rod storage and much more in a wide variety of applications. Perfectly suited for mounting on the yoke of an aircraft,
handlebars and seat posts of bicycles, kayak rails, roll bars and much more, the RAM® Tough-Claw™ will soon become another essential RAM® component in your
collection of mounting options. Made with high strength composite and stainless steel hardware.
|
 |
|
| |
|
Ram 1" Ball with M10 X 1.25 Pitch Male Thread (RAM-B-349) |
Note:
The threaded hole must have the following dimensions for this product to fit: M10 x 1.25 pitch with a—.5mm flange diameter with a 10.15mm thread length.
|
|
|
 |
|
 |
|
