Molecule Motosports - Skid Plate
|
| Molecule Motorsports skid plates are built in Oregon, USA from UHMW (Ultra High-Molecular Weight Polyethylene) plastic
and formed for an exact fit on each bike model to provide the ultimate in protection from rocks, stumps and other obstacles we encounter in technical off road riding conditions. UHMW slides easily over rock when compared to
traditional aluminum skid plates and returns to its shape after significant impacts. The unique shape of a Molecule Skid Plate greatly reduces the amount of mud buildup inside the skid plate in muddy conditions,
reducing weight gain.
Bracket or no Bracket? KTM EXC/XC-W/XCF-W and Husqvarna FE/TE
models from 2017-23 do not require a bracket.
These models use the 2 bolts on the lower frame rails to secure Molecule Motorsports skid plates to the frame along with a sturdy hook that engages the cross tube at the back of the engine cradle.
KTM SX/XC/SX-F/XC-F and Husqvarna FC/FX/TC/TX models require a mounting bracket to install a
Molecule Motorsports skid plate because they do not have the 2 bolts on the lower frame rail. During initial installation, bolt everything up loosely, use a piece of tape or Sharpie to mark where the bracket should be,
then use the permanent adhesive pads hold the bracket in place, making it easy to remove and reinstall the skid plate. |
 |
| |
|
2 Strokes ONLY |
Add To Cart |
|
|
|
| |
|
4 Strokes ONLY |
Add To Cart |
|
|
|
|
|
|
|
|
|
|
Molecule Skid Plate KTM/HQV 250/300

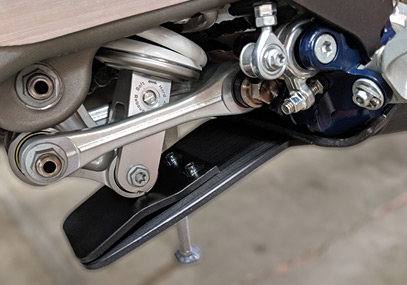

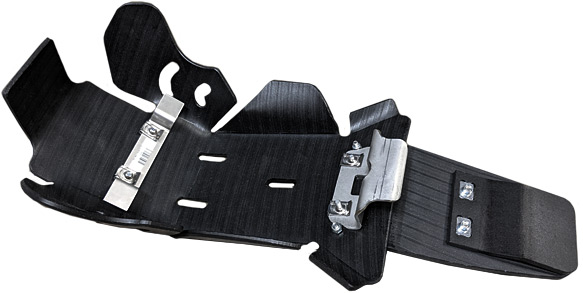

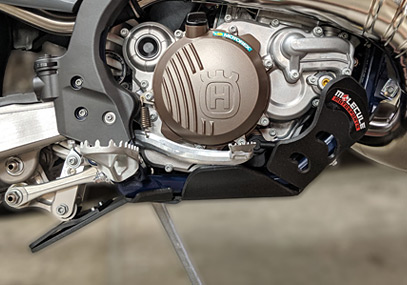

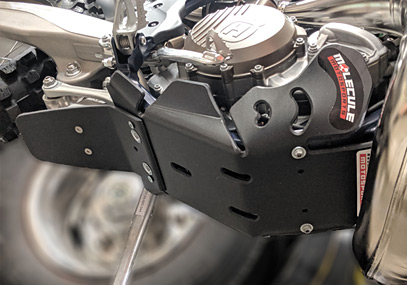

Skid plate shown below with optional linkage guard and mounting bracket.
|
 |
 |
 |
 |
|
 |
| |

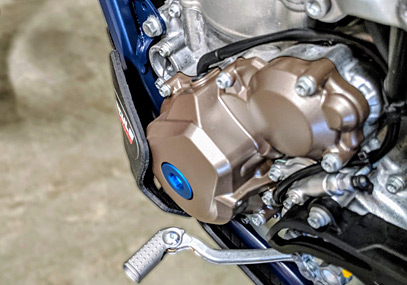

Molecule Skid Plate KTM/HQV 250/350

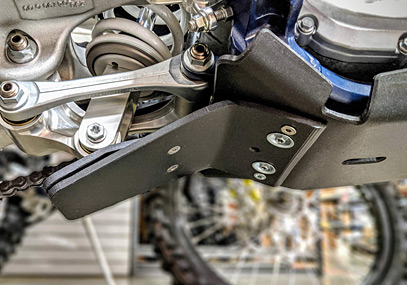

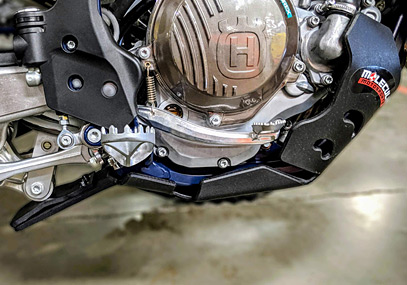

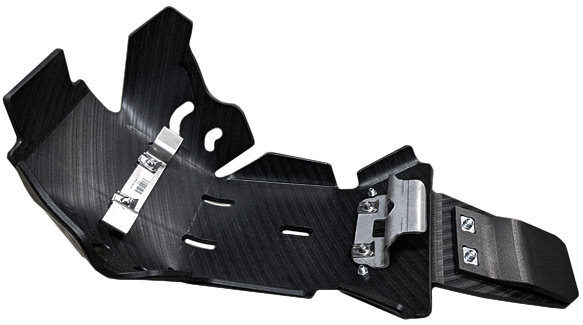

Skid plate shown below with optional linkage guard and mounting bracket.
|
 |
 |
 |
 |
 |
|
| |

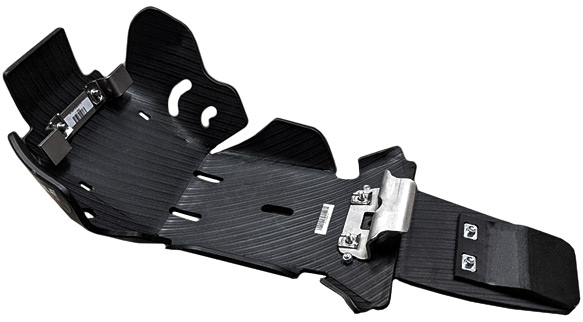

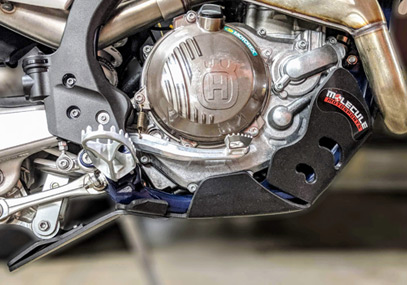

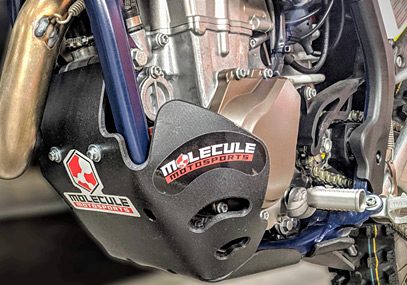

Molecule Skid Plate KTM/HQV 450/501

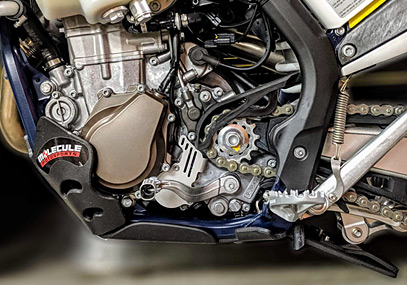

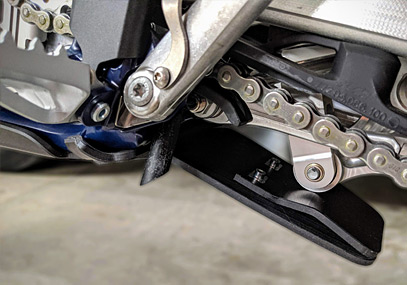

Skid plate shown below with optional linkage guard and mounting bracket.
|
 |
 |
 |
 |
 |
|
|
